THE SMART HOME SYSTEM FOR CAMPERVANS AND RVS
THE SMART HOME SYSTEM FOR CAMPERVANS AND RVS
E1NS is an innovative, turnkey module that completely takes over the electrical distribution in the vehicle for you.
E1NS is equipped with a variety of modern, smart features.
No more unnecessary costs and complicated wiring in your camper! With E1NS you get a solution that connects all your devices and can be controlled intuitively. Your intelligent control for vans and campers. Your intelligent control for vans and campers.
You have probably already seen that in many campers various devices and displays are installed independently and without communication in a random area- with E1NS that is a thing of the past!
Invest in E1NS now and turn your camper into a smart home on wheels.
Easy installation
E1NS is the easiest way to make your camper smart. You don’t have to worry about wire diameter on the battery side, fuse distributors or battery monitors, you can simply connect E1NS to your on-board battery using the included connection cable and connect all devices to it. You only need a SIM card for mobile internet. The antennas for GPS, Wifi and 4G/LTE are included in the box You can connect digital LEDs directly and there are connections for sensors such as temperature and humidity or water tank and gas bottle levels.
Mobile App

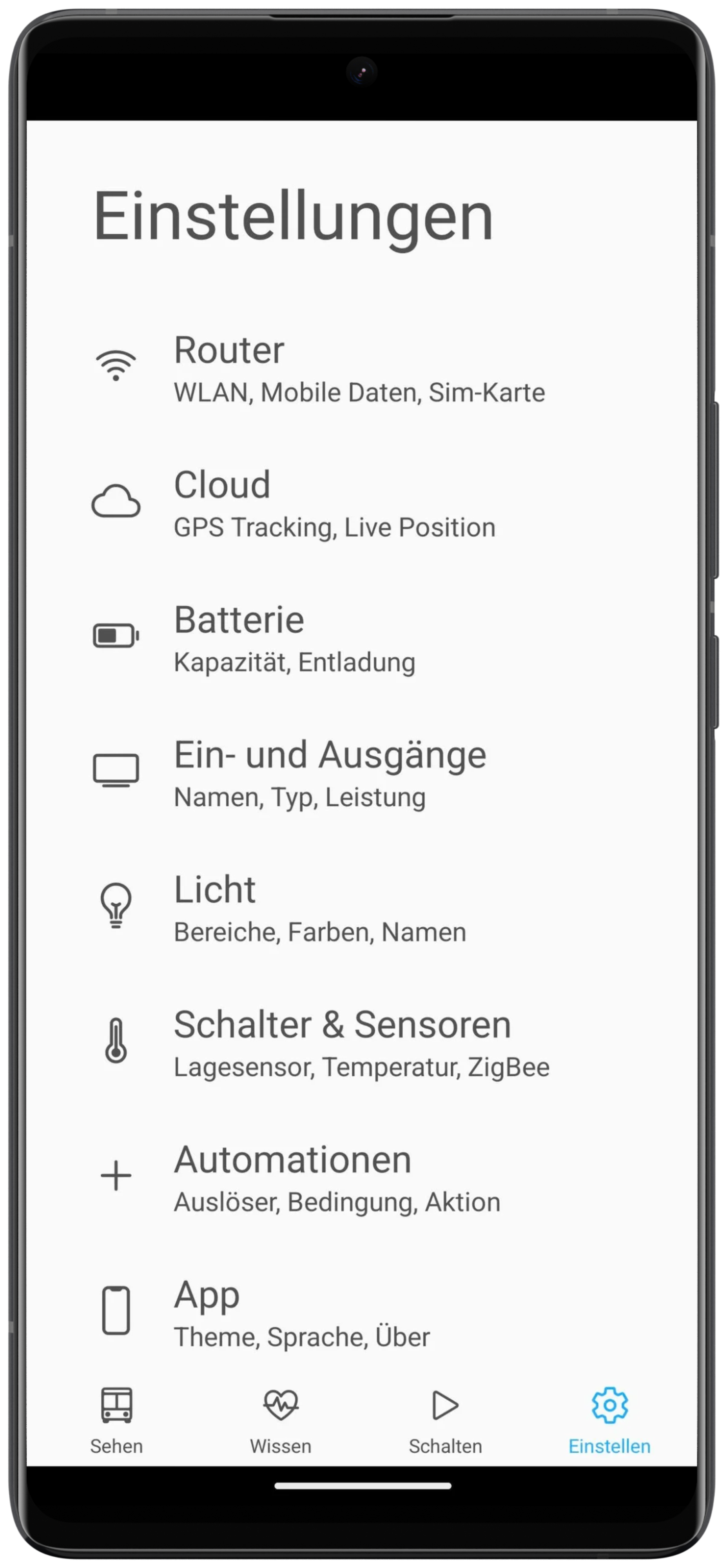

The E1NS app is the digital control center for your campervan. Whether mobile on your cell phone or permanently installed on a display.
With the app you have access to all functions and sensors, such as the remaining battery time at current consumption, the outside temperature and the power generation of your solar system. The app sends notifications about movement or a critical battery level so that you are always informed about the status of your camper. The app is user-friendly and offers an easy way to manage all E1NS features and settings.
But don’t worry, you can also connect conventional switches e.g. for lights and switch them without the app.

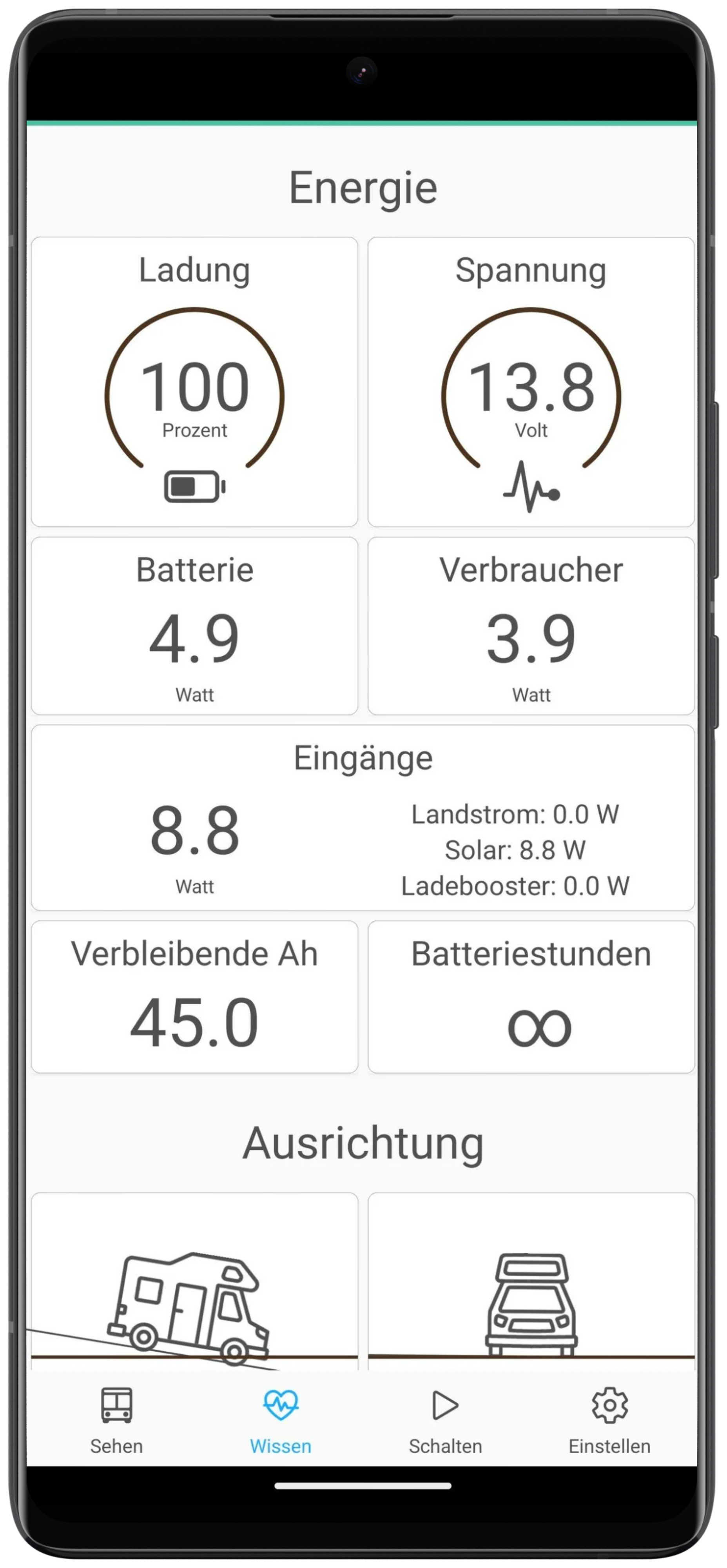

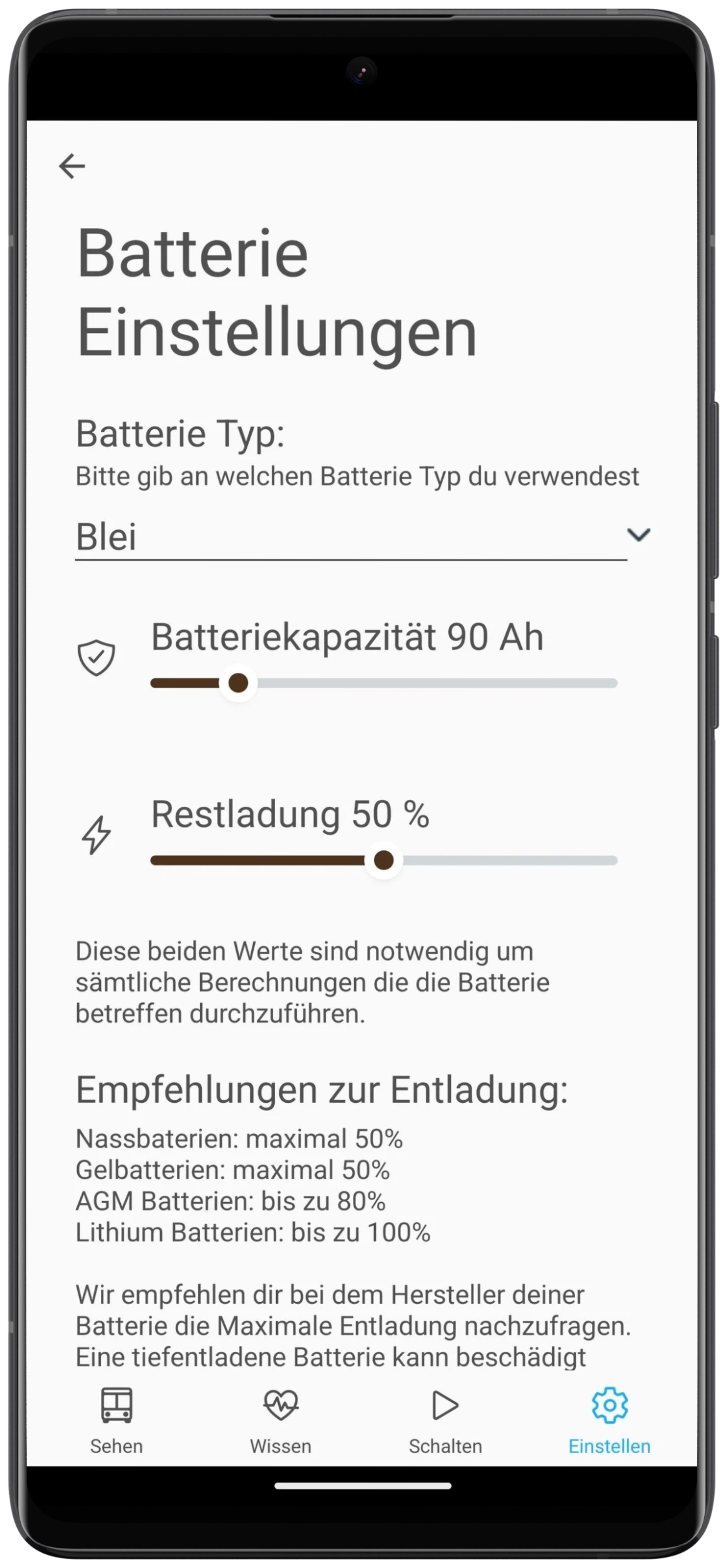

Energy management
E1NS constantly monitors how much power is being consumed and charged and provides inputs for solar charge controllers, alternators, shore power chargers and other energy sources. In the app you receive real-time data about the voltage, power consumption and performance of the system, so you always know how your battery is doing. E1NS also calculates the remaining battery capacity and tells you how many hours you will have power left.
If the battery has a critical charge level, you will receive a notification and, in an emergency, the system will even automatically shut down to protect your battery.

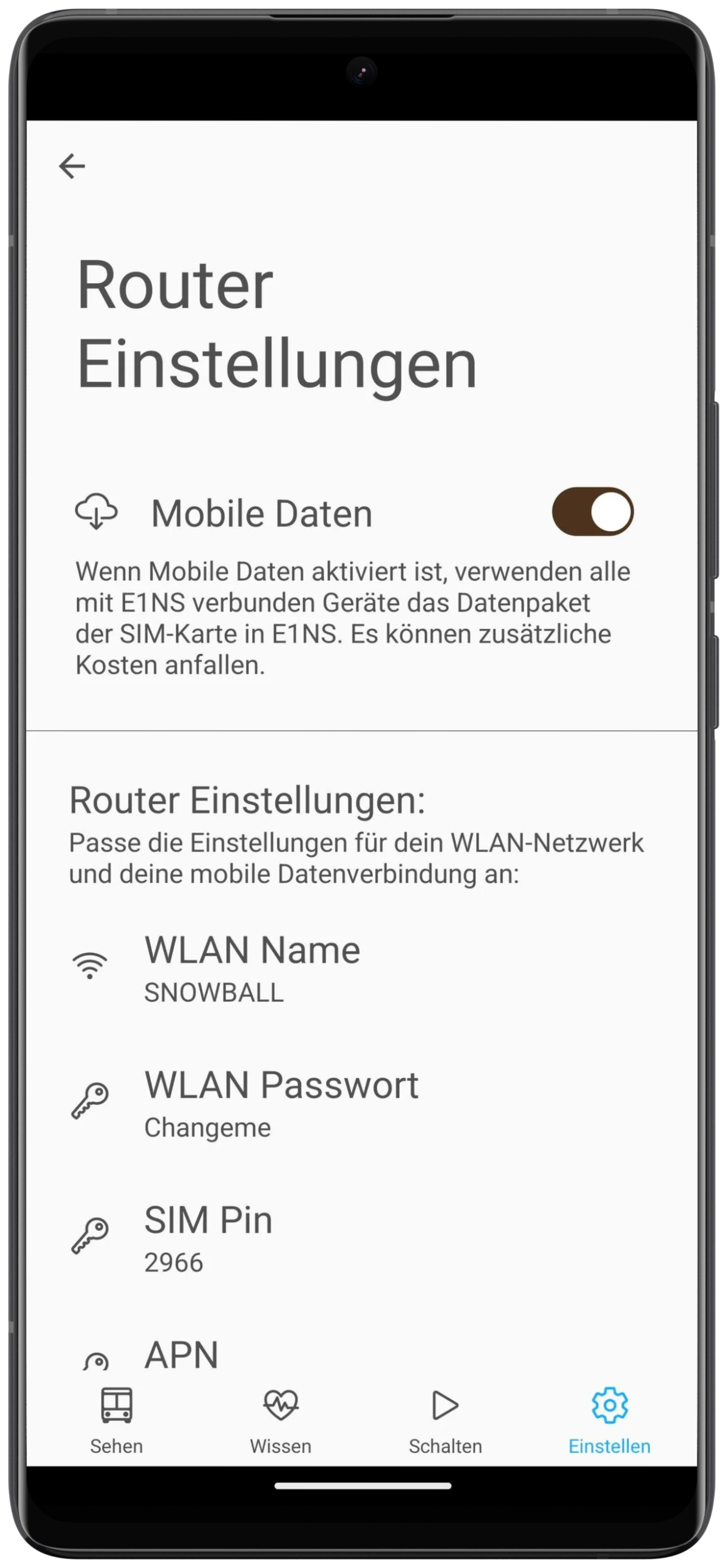

High-speed Internet access
Experience flawless internet access for you, your family and friends with the integrated LTE WiFi router from E1NS. Simply insert a SIM card into the box and stay connected even in remote locations. With the powerful WiFi router from E1NS, you can not only access the Internet, but also communicate with your camper. Monitor your camper’s location and find out how it’s is doing at any time.
If something is not right, E1NS will inform you immediately.

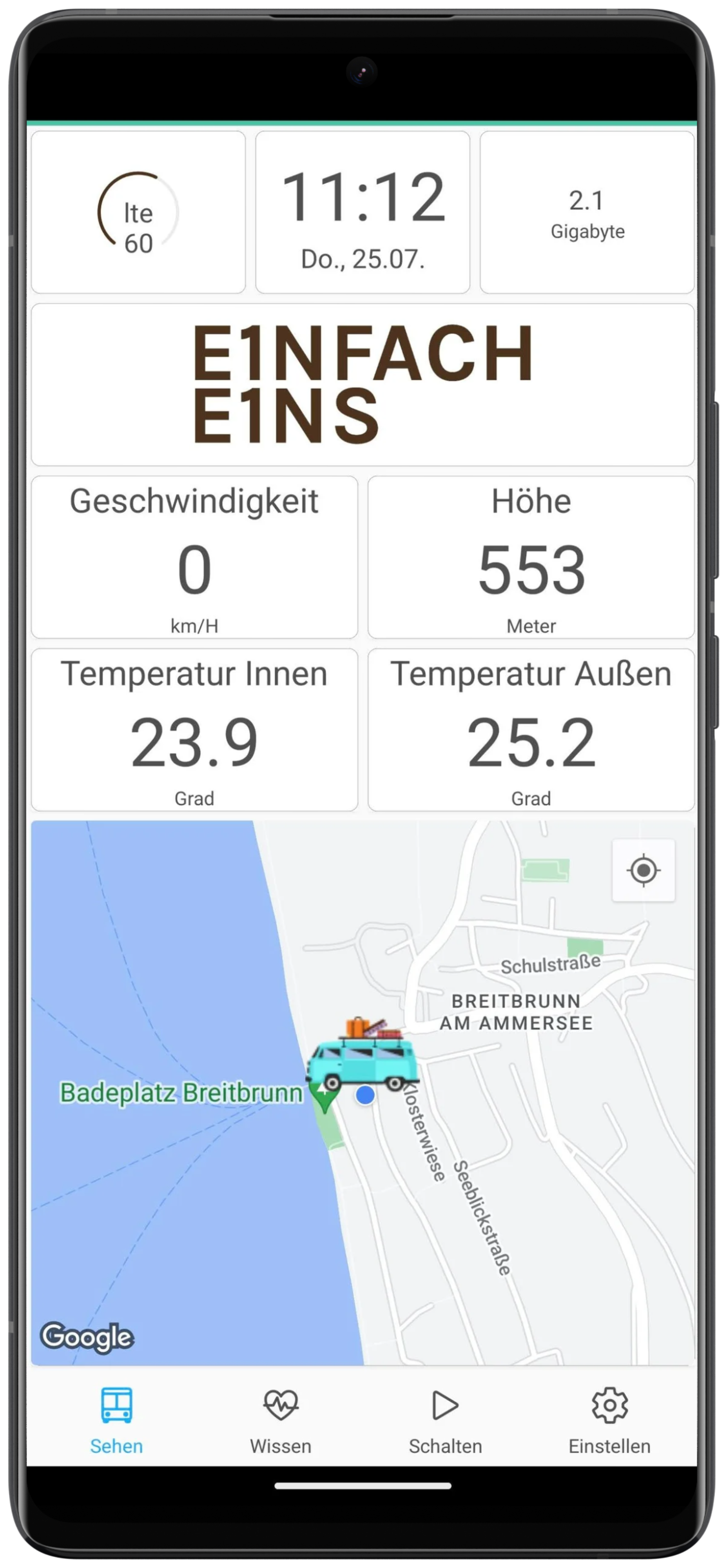

Live position with travel journal
With the live position feature from E1NS, you can always see where your camper is. Monitor it’s movement and track the current location live on a map, easily from your smartphone.
Additionally, there is a geofencing feature and the ability to share the live location with your family and friends.
Using the integrated travel journal, you can see where you have been at any time and special memories are recorded.
This way you can always look back on your adventures, even if it’s been a while.
Alarmsystem
With E1NS you have a powerful alarm system that protects your camper. It combines GPS position and geofencing to check if your camper is moving. An integrated accelerometer immediately notices when doors are opened or someone gets in. Processing this data makes it possible to detect any tampering with the camper to warn you.
You can easily switch the alarm system on and off via the mobile app or activate it automatically when you leave. As soon as an alarm is triggered, you will receive a notification on your smartphone. This means you are always up to date and can react quickly when needed.

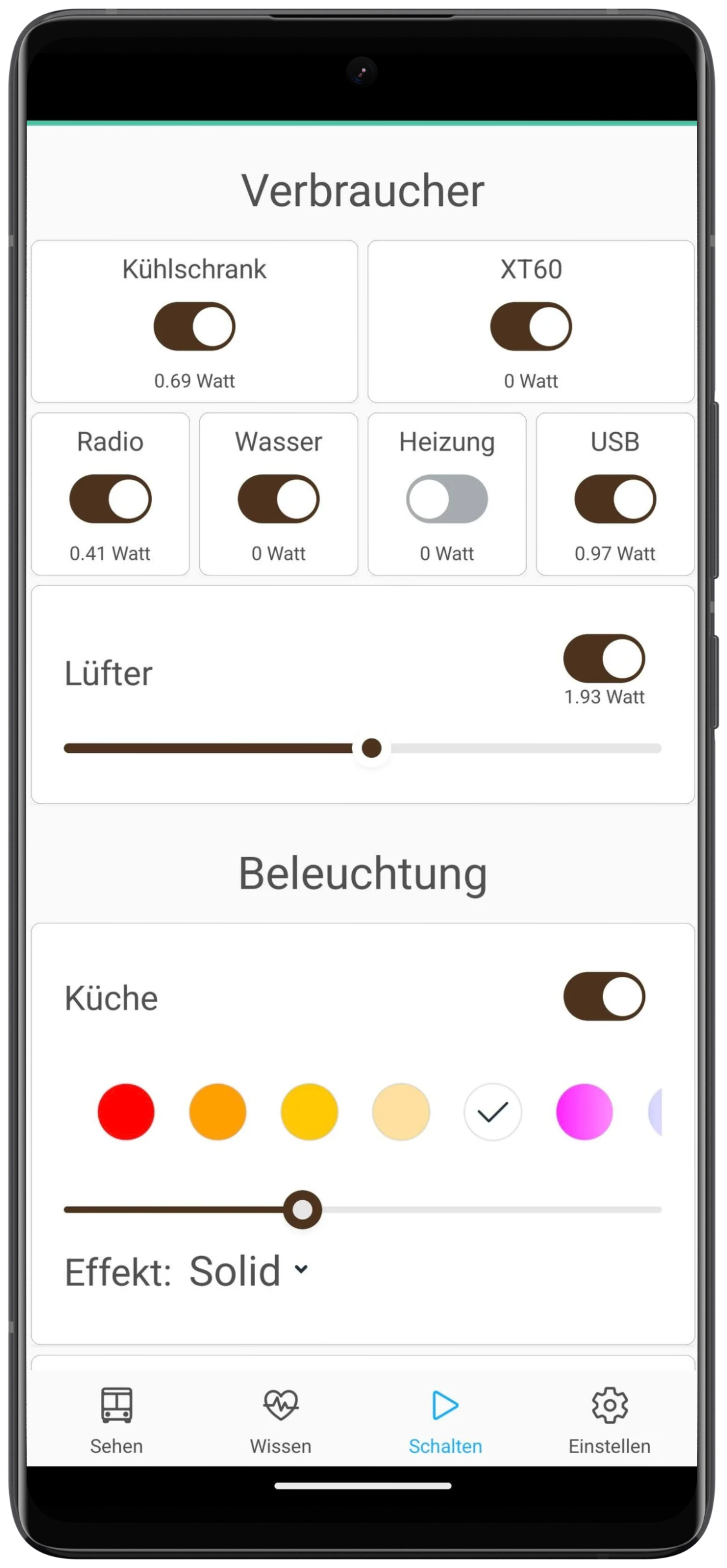

Device control
With E1NS you can easily control your electrical devices via the intuitive mobile app, wireless switches or wired switches.
E1NS has 6 outputs that can switch 10 amps each and two high-current outputs that can provide 15 amps. Each channel is individually electronically fused. You can make settings to automatically turn certain devices on or off depending on when they are needed. You can assign individual switches to specific devices and much more.
Smart automations
Imagine being automatically notified when the temperature in the fridge rises and your beer is about to get warm. Or the fan switches on at night when it gets too warm in the camper. And what if the alarm system activates automatically as soon as you move away from the camper?
With E1NS this becomes reality!
Our automations are based on triggers, conditions and actions. Triggers can be time, timer, position of the sun, sensor values, switches, outputs, presence, GPS position or system states. Conditions include factors such as sun position, time, presence, sensor values, device status, light or position. And the actions? These range from controlling your devices and lights to notifications and system functions.
Light control
With E1NS you can control your lights easily and conveniently. Connect digital LED strips or 12 volt lights to E1NS to create the right atmosphere for every mood. You can easily switch the light on and off using a switch or using the user-friendly app – even outside the camper. With the LED control you can adjust the color and brightness to create the perfect mood.
If you’re in a party mood, there’s even a party mode that will turn your camper into a rolling club.
Sensors
You can connect various sensors to E1NS. The package includes two temperature sensors so that you have immediate values for the inside and outside temperature at your disposal.
E1NS is equipped with a level sensor that allows you to always check whether your camper is parked straight.
Expandable with ZigBee
E1NS can be expanded with the E1NFACH ZigBee module and is compatible with countless ZigBee devices from a wide range of manufacturers such as IKEA, Philips, ALDI, Lidl, Sonoff, Tuya, Aqara and many more.
compatible!
Whether switches, motion detectors, temperature sensors, vibration detectors, door contacts or even a magic cube – these wireless, mostly battery-operated and inexpensive extensions offer even more options for customizing your camper.
You can find a list of supported devices here.
CAMP SMART
Frequently asked questions about our smart system:
Here you will find answers to most of the questions we have been asked about our system. We hope you find all the information you need to fully understand and use E1NS. If you still have any further questions, please do not hesitate to contact us.
E1NS is an innovative, turnkey electrical distribution module equipped with modern smart functions.
E1NS offers a simple solution that connects all devices in the camper and can be controlled intuitively. It avoids unnecessary costs and complicated wiring and offers easy installation.
E1NS is very easy to install, you just have to connect it to your on-board battery using the included connection cable and connect all devices. Connect the antennas and position them in your camper – That’s it!
You don’t have to worry about cable cross-sections, fuse distributors or battery monitors on the battery side.
E1NS takes care of all this for you.
The E1NS app is the digital control centre for your camper, with which you have access to all functions and sensor data. The app is user-friendly and offers an easy way to manage all features and settings of E1NS.
Yes, you can also connect switches and control devices and lights without the app.
E1NS constantly monitors system power consumption and performance and provides data in real time. E1NS also calculates the remaining battery capacity and protects the battery in an emergency by automatically switching off loads and shutting down the system.
You get the E1NS box as well as the antennas for GPS, Wifi and 4G/LTE, two temperature sensors and a battery connection cable.
Yes, you need a separate SIM card for mobile internet. Many providers offer additional SIM cards with their contracts. Which solution you choose is entirely up to you.
Delivery will take place from September 2024.
The E1NS system is available for €749.
All prices exclude shipping costs.
shipping costs.
You can use two Votronic sensors for the fill level sensors of your fresh and gray water tanks.
https://www.votronic.de/tankgeber/
These are fully compatible with our E1NS system and provide reliable measurements.
Technical details:
With more than three years of development, we have listened to the needs and suggestions of the community and our testers. The result is a product that impresses with modern technology and an exceptional user experience. All this at a surprisingly affordable price.
NOTE: Not all parameters are fixed.
The parameters marked with * may still change.
In particular, we are trying to increase the maximum available current to 80A; tests are still being carried out here.
Possible changes:
- Increase the maximum battery current to 80A
- Switch to OpenWRT 23.05.
- Switch to global modem (currently only EU)
- Housing material
You can find out exactly what’s inside here:
Processor
Type:
MT7688AN
Speed:
580 MHz MIPS CP
Memory:
128 MB RAM and 384 MB flash swap
Operating system*:
OpenWRT 22.03.
( 23.05.)
Modem
Category:
LTE Cat 4
Data rate:
Max.
150 Mbps downlink / 50 Mbps uplink
Frequency bands:
LTE-FDD, LTE-TDD, GSM/EDGE, WCDMA
GNSS:
GPS/GLONASS/BeiDou(Compaass)/Galileo
Carrier (Europe)*:
Deutsche Telekom / British Telecom
VoLTE:
Digital Audio and VoLTE
WIFI
Dual mode Wi-Fi – access point and client at the same time
WIFI Protocol:
IEEE 802.11 b/g/n
Base Band:
2.4Ghz
Data Rate:
150 Mbit/s
Channel Bandwidth:
20/40 MHz
Encryption Mode:
WPA3 , WPA2
WIFI telephony (via LTE / extended WIFI):
Supports
General electrical specifications
Input voltage range:
11 V – 16 V
Standby power (modem active):
200 mA at 12.6 V
Standby power consumption:
2.6 watts
Max.
Battery current*:
60 A / 80 A < 30s
Max.
Current Charging inputs*:
60 A
Supported battery types:
Lead-acid, AGM, GEL, LiFePo4
Battery fuse*:
60 A with circuit breaker
Electrical inputs
3-channel battery charging inputs
Max.
Total input current*:
60 A (1 x 10A, 1 x 20A, 1 x 30A)
Input voltage range:
12 – 15 V (depending on charger)
Security features*:
Fuses (1 x 10 A, 1 x 20 A, 1 x 30 A)
Electrical outputs
Maximum total output current*:
60 A
8 channel power output switch
Infineon High Side Power Switch
Output voltage:
Battery voltage
Max.
Output current per channel:
15 A (max. 60 A total limited via software)
Security features:
Overcurrent protection, reverse polarity protection, overtemperature protection
electrical connection:
2-pole screw terminals
1 channel permanent output (2 connection terminals)
Output voltage:
Battery voltage
Max.
output current*:
10 A
Security features*:
10 A fuse
electrical connection:
2-pole screw terminals
USB output (power supply only)
Output voltage:
5V
Max.
output current:
500 mA
electrical connection:
USB A
Sensors
Accelerometer:
3 axis gyroscope, 3 axis acceleration 16bit
2 channel analog inputs:
0V – 3.3 V (level sensors)
Temperature sensors:
PTC
LED connection
Supported types:
WS2811, WS2812, WS2815, SK6812
Maximum output power:
150 watts
Note: The power supply of the LED output uses output channel 1 when in use.
If digital LEDs are connected, output 1 is no longer available for other 12V devices.
Antenna connections
Types:
LTE Main, LTE Diversity, WIFI, GPS
Connection:
4 x SMA male
General data
Dimensions(LxWxH):
168mm x 93mm x 45mm
Temperature range:
-15C to +50C
Weight:
850 grams
Housing material*:
ASA
Cover material:
PMMA
The parameters marked with * are subject to change.
